Reverse Osmosis Drinking Water System

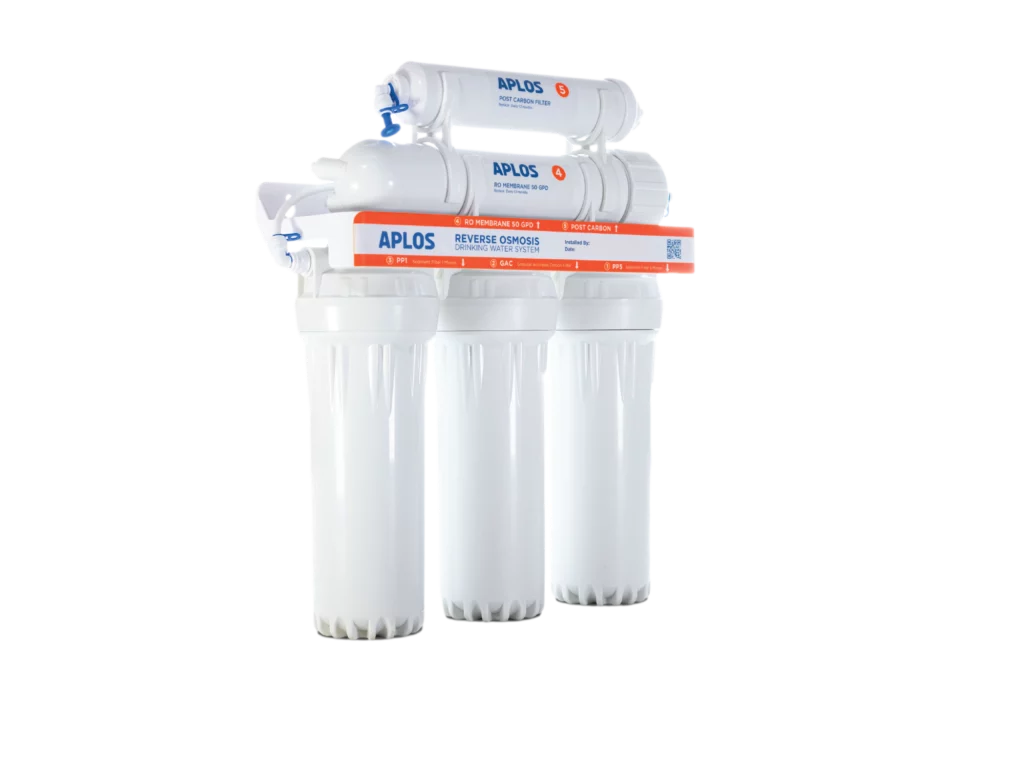

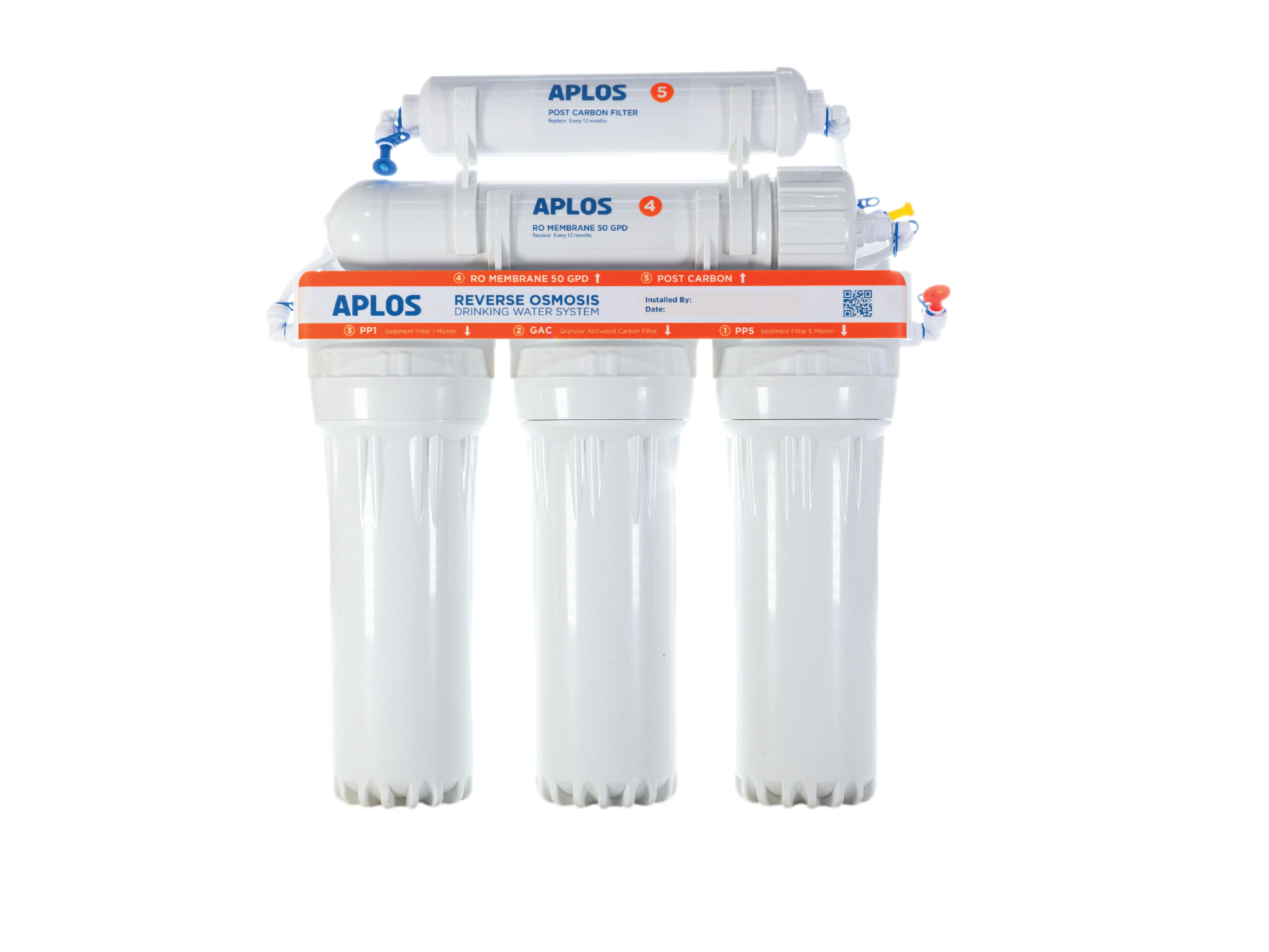

5 Stage Non-Pumped Reverse Osmosis Drinking Water System

  • Effectively reduces 99% of contaminants
  • 7.9 L/hour or 190L/day of drinking water
  • Provides refreshing crisp taste, superior to bottled water
  • Modern chrome tap and up to 7L storage tank
  • Quick and easy installation
  • Inexpensive universal filter cartridges
  • Cost-effective and highly efficient

Drinking water system features 5 stages of filtration:

  • STAGE 1: SEDIMENT FILTER - PP5 MICRON
  • Reduces dirt, sediment, rust, sand, and other particles
  • STAGE 2: GRANULAR ACTIVATED CARBON FILTER
  • Reduces chlorine, unpleasant taste and odours. Protects and extends reverse osmosis membrane service life
  • STAGE 3: SEDIMENT FILTER - PP1 MICRON
  • Final fine cleaning. Removes particles larger than 1 micron
  • STAGE 4: RO MEMBRANE
  • Splits water into clean and wastewater, sending 99% of all impurities, such as heavy metals, pesticides, nitrates, microplastics, bacteria etc to waste
  • STAGE 5: POST CARBON FILTER
  • Final polishing process to enhance clarity and freshness

Operating Parameters

  • Water source: municipal or pre-treated well water
  • Feed water quality/TDS: <1500ppm
  • Inlet water temperature: 4-30 degrees C
  • Inlet water pressure: 3 - 6 bar*
  • Inlet pH Range: 6.50-8.50
  • Maximum Iron: <0.3ppm
  • *RO systems require pressure to operate. Variations in pressure either too high or low can cause changes in purified water quality. RO systems can operate with a minimum pressure of 3 bar although 4 bar is more ideal. Systems should also be limited so that they do not exceed the maximum 6 bar operating pressure. This is normally done with a pressure reducing valve. A pumped RO system is a better choice in low mains pressure areas

Accessories included with the system:

  • Feed water adapter, feed valve, drain saddle
  • Pressure tank (total vol. 12 L/3.2 gal, usable vol. up to 7 L/1.8 gal)
  • Colour tubes for easy installation
  • Chrome filtered water faucet
  • Service wrenches
  • User manual

Replacement Kits

FILTRATION STAGES
Description
Stock Code
1
Aplos 3 pack of replacement filters (PP5 - GAC - PP1)
1198884
2
Aplos 2 pack of replacement filters (50 GPD RO membrane - Post Carbon Filter)
1198885
