Reverse Osmosis Drinking Water System
Menu

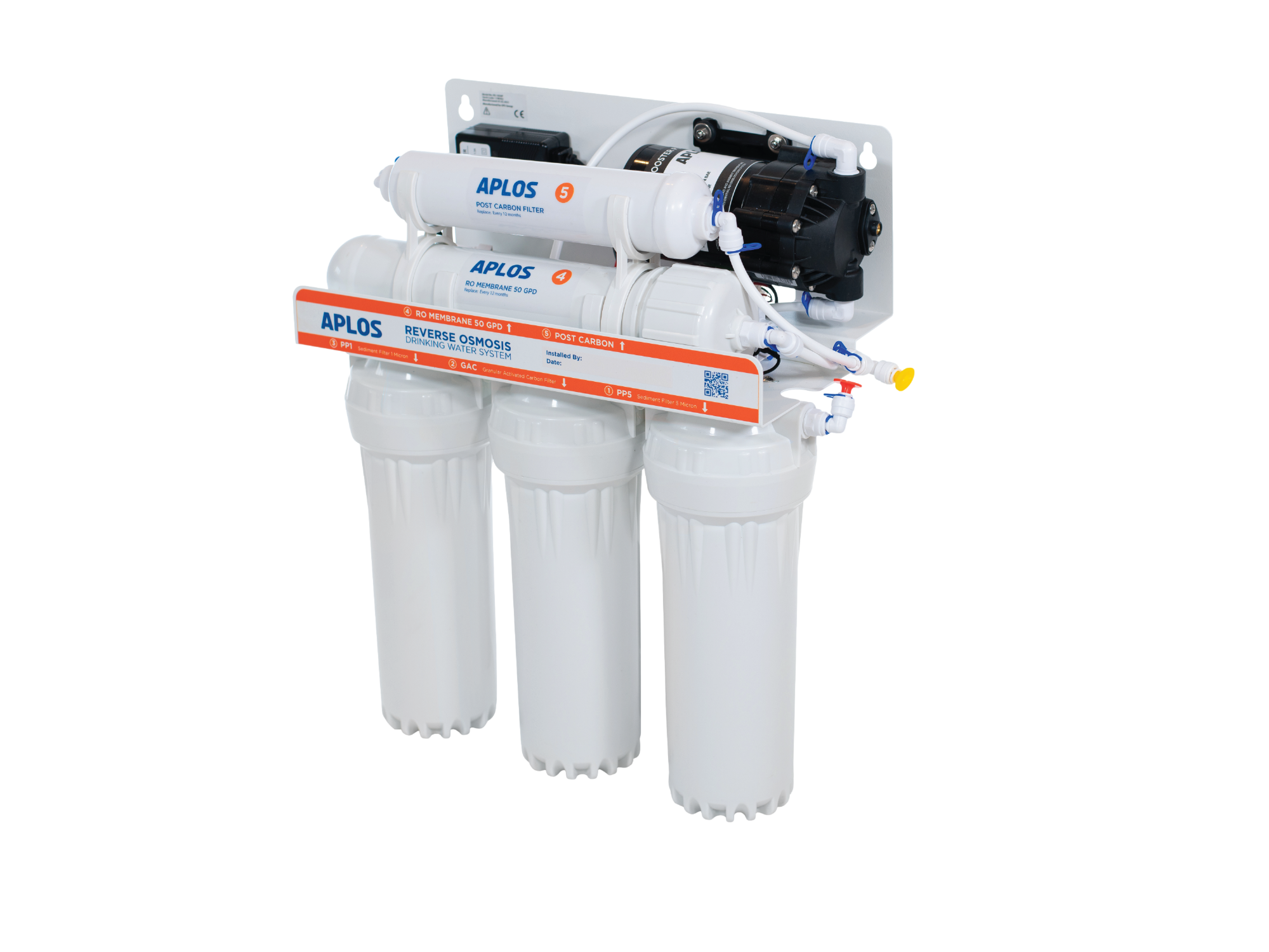

5-Stage Pumped
Reverse Osmosis System
- Ideal for households with mains pressures under 3 bar
- Effectively reduces 99% of contaminants
- 7.9 L/hour or 190L/day of drinking water
- Provides refreshing crisp taste, superior to bottled water
- Modern chrome tap and up to 7L storage tank
- Quick and easy installation
- Inexpensive universal filter cartridges
- Cost-effective and highly efficient
Drinking water system features 5 stages of filtration:
- STAGE 1: SEDIMENT FILTER - PP5 MICRON
- Reduces dirt, sediment, rust, sand, and other particles
- STAGE 2: GRANULAR ACTIVATED CARBON FILTER
- Reduces chlorine, unpleasant taste and odours. Protects and extends reverse osmosis membrane service life
- STAGE 3: SEDIMENT FILTER - PP1 MICRON
- Final fine cleaning. Removes particles larger than 1 micron
- STAGE 4: RO MEMBRANE
- Splits water into clean and wastewater, sending 99% of all impurities, such as heavy metals, pesticides, nitrates, microplastics, bacteria etc to waste
- STAGE 5: POST CARBON FILTER
- Final polishing process to enhance clarity and freshness
Operating Parameters
- Water source: municipal or pre-treated well water
- Feed water quality/TDS: <1500ppm
- Inlet water temperature: 4-30 degrees C
- Inlet water pressure: <3 bar*
- Inlet pH Range: 6.50-8.50
- Maximum Iron: <0.3ppm
- *RO systems require pressure to operate. Variations in pressure either too high or low can cause changes in purified water quality. RO systems can operate with a minimum pressure of 3 bar although 4 bar is more ideal. Systems should also be limited so that they do not exceed the maximum 6 bar operating pressure. This is normally done with a pressure reducing valve. A pumped RO system is a better choice in low mains pressure areas
Accessories included with the system:
- Feed water adapter, feed valve, drain saddle
- Pressure tank (total vol. 12 L/3.2 gal, usable vol. up to 7 L/1.8 gal)
- Colour tubes for easy installation
- Chrome filtered water faucet
- Service wrenches
- User manual
Replacement Kits
|
FILTRATION STAGES
|
Description
|
Stock Code
|
|---|---|---|
|
1
|
Aplos 3 pack of replacement filters (PP5 - GAC - PP1)
|
1198884
|
|
2
|
Aplos 2 pack of replacement filters (50 GPD RO membrane - Post Carbon Filter)
|
1198885
|
